40 Channels AWG Multiplexer / Passive Optical Network AWG Optical Module

Name: 40 Channels AWG Multiplexer Passive Optical Network AWG Optical Module
Brand: Seacent
Price: 1 USD

Buy cheap 40 Channels AWG Multiplexer / Passive Optical Network AWG Optical Module product

Brand Name : Seacent

Model Number : AWG-40CH-4

Certification : ISO9001,ROHS

Place of Origin : Guangdong,China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 5-8 work days

Name : AWG Multiplexer

Wavelength Accuracy : ±0.07

Full 1dB Bandwidth : ＞0.7

Full 3 dB Bandwidth : ＞1.0

Channels : 40 Channels

Warranty : 3 years

Contact Now

40 Channels AWG Multiplexer / Passive Optical Network AWG Optical Module

Introducton:

Array waveguide particles used in wavelength division multiplexing (WDM-PON) are also called AWGs. This is a method of manual optical transmission products using high-speed transmission. For transmission methods of large-capacity storage signals such as images, telephones, and data, only 16 and 32 members need to be divided into one optical path at a time. Areas that require long-distance transmission are also used.

AWG Multiplexer Features:

- Low Insertion Loss

- High Isolation

- Low PDL

- Compact Design

- Good channel-to-channel uniformity

- Wide Operating Wavelength

- From 1260nm to 1620nm

- Wide Operating Temperature

- From -40°C to 85°C

- High Reliability and Stability

AWG Multiplexer application areas:

-Signal, network monitoring, real-time line monitoring system

AWG Multiplexer Technical Parameters

parameter	Unit	100Ghz		100Ghz
parameter	Unit	Gaussian	Flat top	Gaussian	Flat top
Wavelength Accuracy	nm	±0.05	±0.05	±0.07	±0.07
Full 1dB Bandwidth	nm	＞0.2	＞0.4	＞0.4	＞0.7
Full 3 dB Bandwidth	nm	＞0.4	＞0.6	＞0.7	＞1.0
Optical Insertion Loss	dB	3.7	4.5	3.7	4.5
Loss Uniformity	dB	1.0	1.0	0.8	0.8
Adjacent Channel Crosstalk	dB	27.0	27.0	28.0	28.0
Non-adjacent Channel Crosstalk	dB	30.0	30.0	30.0	30.0
Optical Return Loss	dB	＞40	＞40	＞40	＞40
Polarization Loss	dB	＜0.5	＜0.5	＜0.5	＜0.5
Dimension	mm	120x70x12.3 / 85x58x113
Operating Temperature	℃	-20- 70

40 Channels AWG Multiplexer / Passive Optical Network AWG Optical Module

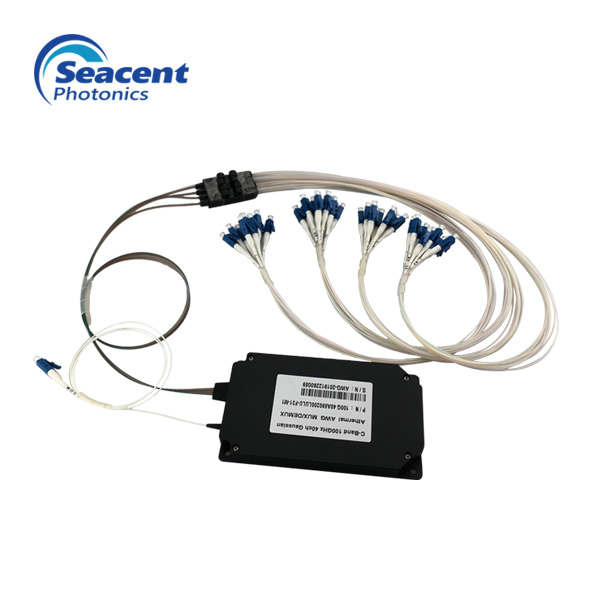

AWG Multiplexer Details

40 Channels AWG Multiplexer / Passive Optical Network AWG Optical Module

Detailed parameters

DWDM-AWG-Seacent Photonics.pdf
