40G QSFP+ to 4x10G SFP+ AOC Multi-Mode Active Optical Cables

Name: 40G QSFP to 4x10G SFP AOC MultiMode Active Optical Cables
Brand: Seacent
Price: 1 USD

Buy cheap 40G QSFP+ to 4x10G SFP+ AOC Multi-Mode Active Optical Cables product

Brand Name : Seacent

Model Number : 40G QSFP+ to 4x10G SFP+

Certification : ISO9001,ROHS

Place of Origin : Shenzhen,China

MOQ : 1 piece

Payment Terms : L/C,T/T,D/P

Supply Ability : 100,000 pieces per month

Delivery Time : 5-8 work days

Product name : 40G QSFP+ to 4x10G SFP+

Total Speed : 40G

Breakout Type : 1:4

Length : 1m-100m

Contact Now

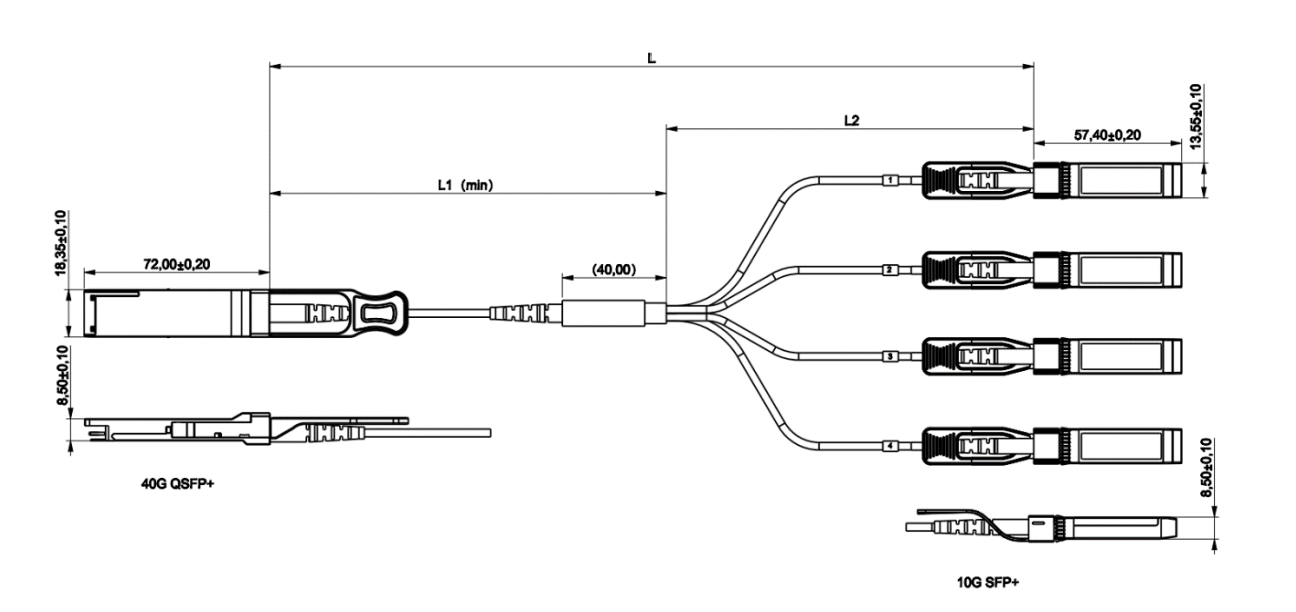

40G QSFP+ to 4x10G SFP+ AOC

This Seacent breakout active optical cable converts one 40G QSFP+ port into four 10G SFP+ ports for short-range data communication and interconnection. It integrates four independent channels within a single cable, providing an aggregate bandwidth of 40Gbps, suitable for connecting multiple 10G devices to a 40G uplink.

Product Features:

• Breakout interconnect cable between one QSFP+ end and four SFP+ ends
• Supports data rates up to 10.3125 Gbps per lane
• Compliant with QSFP+ and SFP+ Multi-Source Agreement (MSA)
• Utilizes 850nm VCSEL transmitter array and PIN receiver array
• Low Power Dissipation: QSFP+ <1.4W; SFP+ <0.8W

Applications:

• 40GBASE SR4 Ethernet
• 10GBASE SR Ethernet

Details:

Type	Total Speed	Breakout Type	SideA Speed	Side A Form Factor	Side B Speed	Side B Form Factor
40G QSFP+	40G	1:1	4x10G NRZ	QSFP+	4x10G NRZ	QSFP+
40G QSFP+ to 4x10G SFP+	40G	1:4	4x10G NRZ	QSFP+	1x10G NRZ	SFP+

Absolute Maximum Ratings:

Parameter	Symbol	Min.	Max.	Unit
Power Supply Voltage	VCC	-0.5	+3.6	V
Storage Temperature	Tc	-40	+85	℃
Relative Humidity	RH	0	85	%

Recommended Operating Conditions

Parameter	Symbol	Min.	Typical	Max.	Unit
Supply Voltage	VCC	3.15	3.30	3.45	V
Case Operating Temp. (Standard)	Tca	0	—	+70	℃
Case Operating Temp. (Industrial)	Tca	-40	—	+85	℃
Data Rate Per Lane	DR	—	—	10.3125	Gbps
Fiber Bend Radius	Rb	3	—	—	cm
